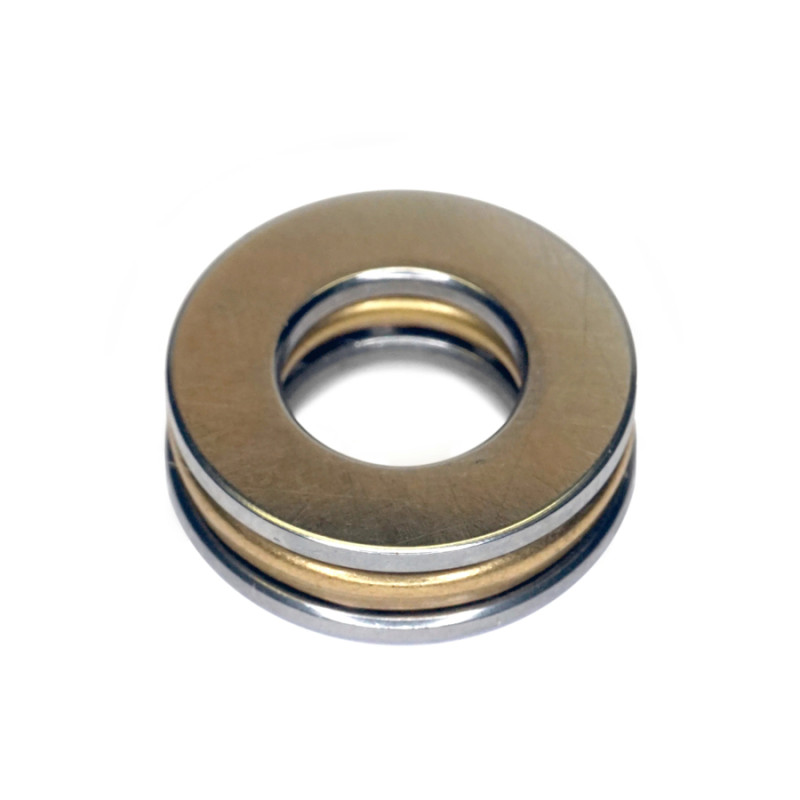

thrust bearing F8-16M size 8*16*5

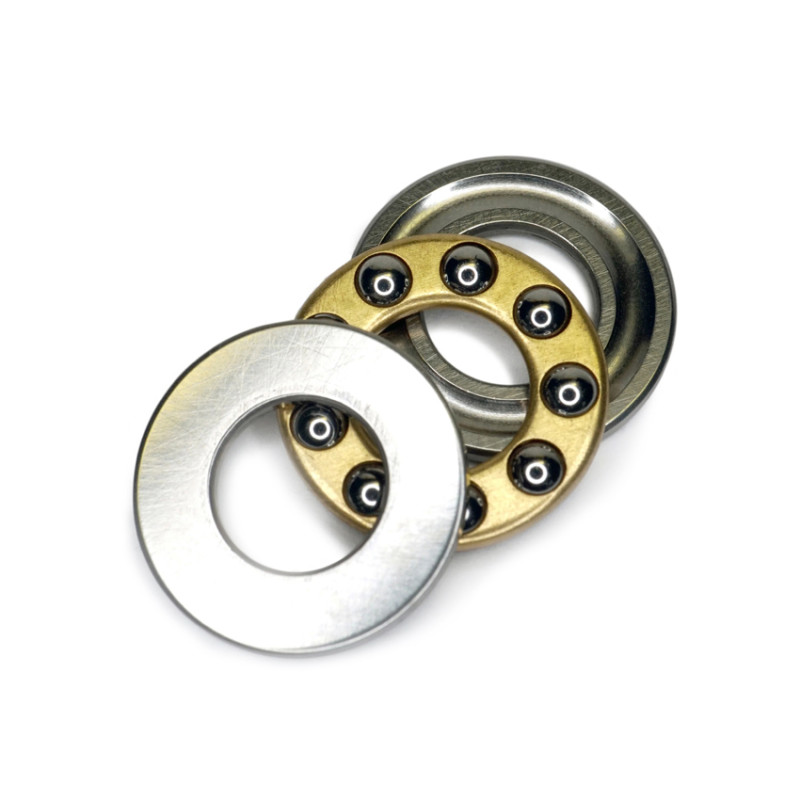

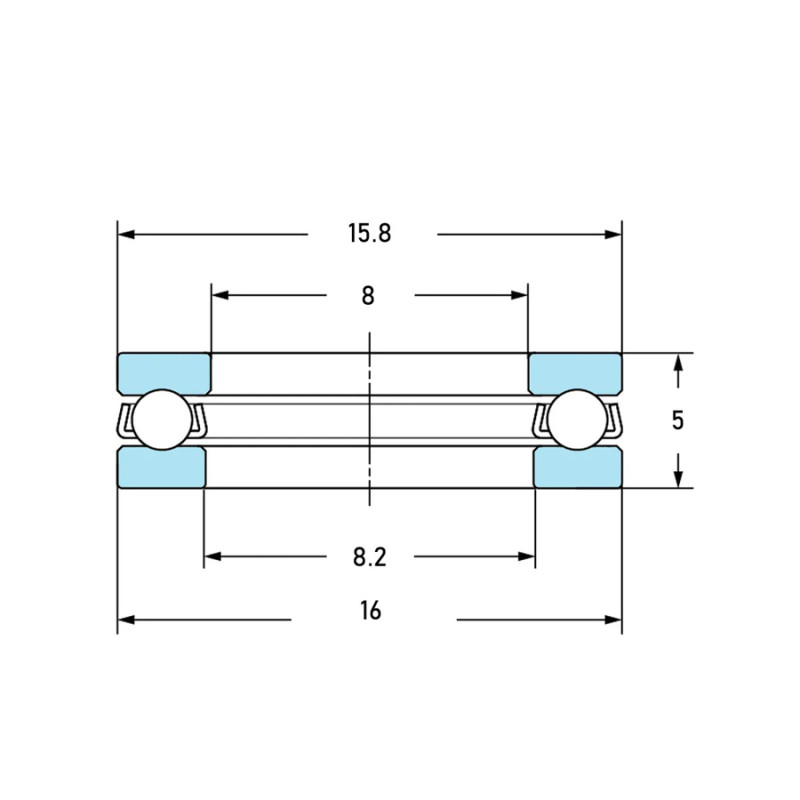

Miniature thrust bearing F8-16M size 8*16*5 for use in special conditions. Suitable for installation in confined spaces and on thin shafts.nnIt carries axial loads and can be easily dismantled. The main dimensions comply with DIN 711.nnBearing grade: F8-16MnnQuality standard: P3 (Class 3, ABEC3)nnBearing type: miniature thrust ball bearing, open typennSeparable and divided into 3 parts. Round grooves.nnOperating temperature range -40+120°C.nnMaximum number of revolutions: 5000.nnDynamic load Cr: 4990 N.nnStatic load Cor: 3920 N.nnInner ring bore, mm: 8nnOuter ring bore, mm: 8,2nnOuter diameter of the outer ring, mm: 16nnOuter diameter of the inner ring, mm: 15,8nnTotal width, mm: 5nnBall size, mm: 3nnNumber of balls: 9nnMaterial: SAE-52100 chrome-plated steel, brass.nnWarranty period: 3 months from the date of purchase.
