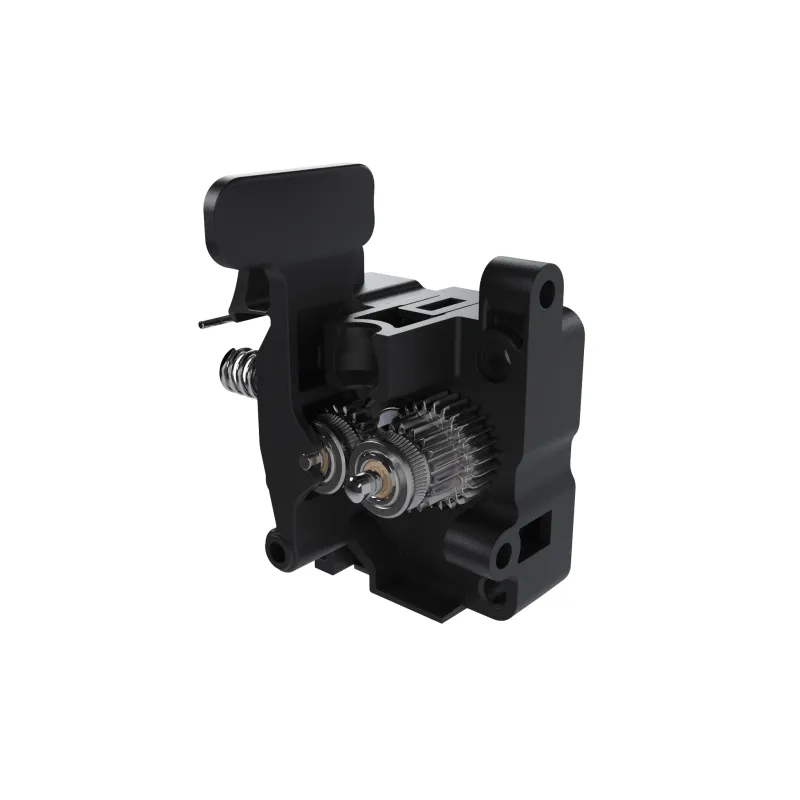

Roto Vitamins extruder from E3D

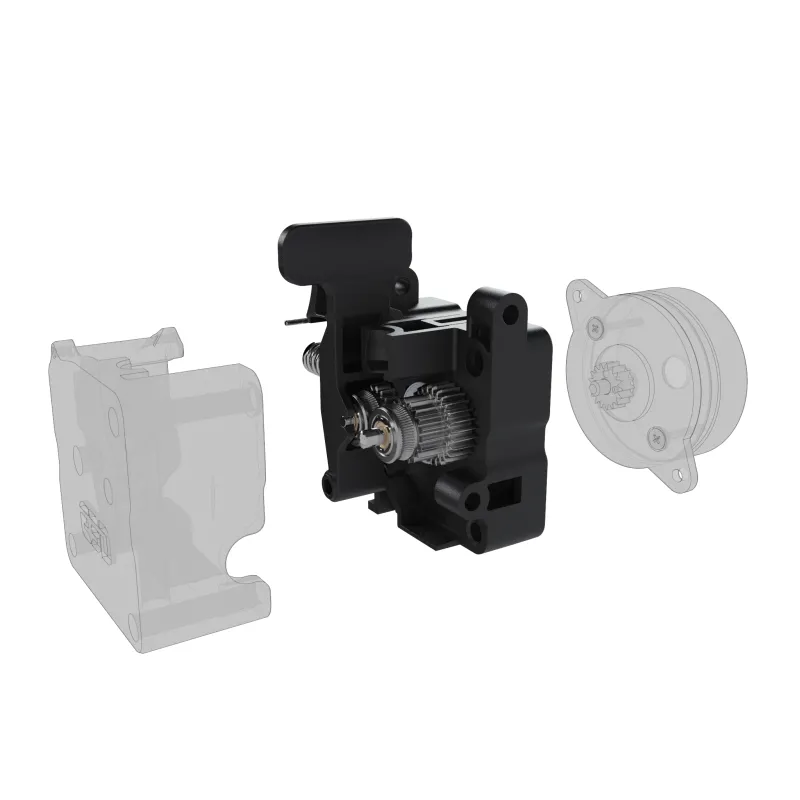

Bring your 3D printer to lifennRoto Vitamins allows you to take the highly optimized lightweight gearbox from our Roto direct drive extruder and implement it into your own build head to improve print quality. The metal heat sink printed on the SLM 3D printer has been replaced with a plastic cover that is fully customizable to facilitate integration into different machines. This design remains compatible with our custom Roto filament sensors and tooling platforms.nnLightweight yet powerfulnnThe Roto reducer consists of a planetary primary stage followed by a cylindrical secondary stage and a third stage with double hobbing. This combination provides sufficient extrusion force to fully utilize the maximum volumetric flow rate of our Revo High Flow nozzles, while providing a favorable stall protection mode. Due to the flexibility Roto Vitamins provides the user, it can also be used in conjunction with other non-E3D HotEnds.nnAutomatic tensioningnnThe Roto Vitamins features a simple dual-stable idler mechanism that provides optimal tension for printing on all types of filaments, and also releases tension completely to help with filament unloading and cold broaching. This means you can change the nozzle and release the thread with one hand!nnA 1mm dowel pin is included to ensure the idler clamp slides smoothly, maintaining its functionality and allowing for FDM 3D printing of the front cover.nnAdditional upgradesnnCheck out our toolbar and filament monitoring options to enhance your hands-free printing experience.nnThe perfect combination with VoronnnE3D has developed several mounts for easy integration with Voron printers, check them out here. There are also several basic designs that can be integrated into any of your systems!nn⚠️ WARNING: This product can expose you to chemicals including mineral oils, which are known to the State of California to cause cancer, and lead and nickel, which are known to cause cancer and birth defects or other reproductive harm.nnThe kit includesn

n
• 1 x Roto gearbox assembly
n
• 1 x Roto Hobb Gear Kit
n
• 1 x Bowden collet
n
• 1 x Dowel D1 L18
n
• 1 x Dowel D3 L18
n
