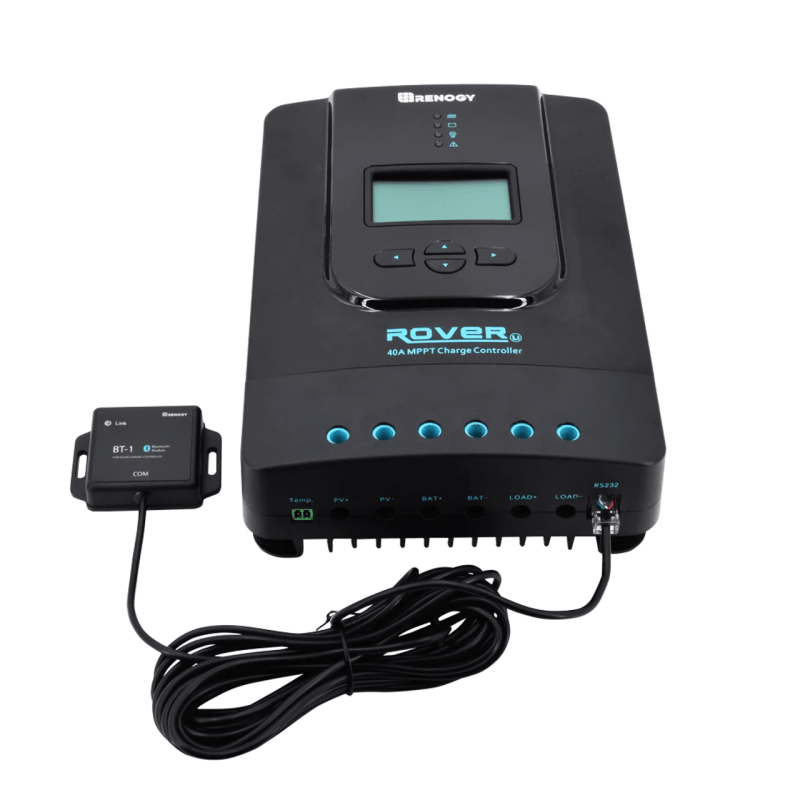

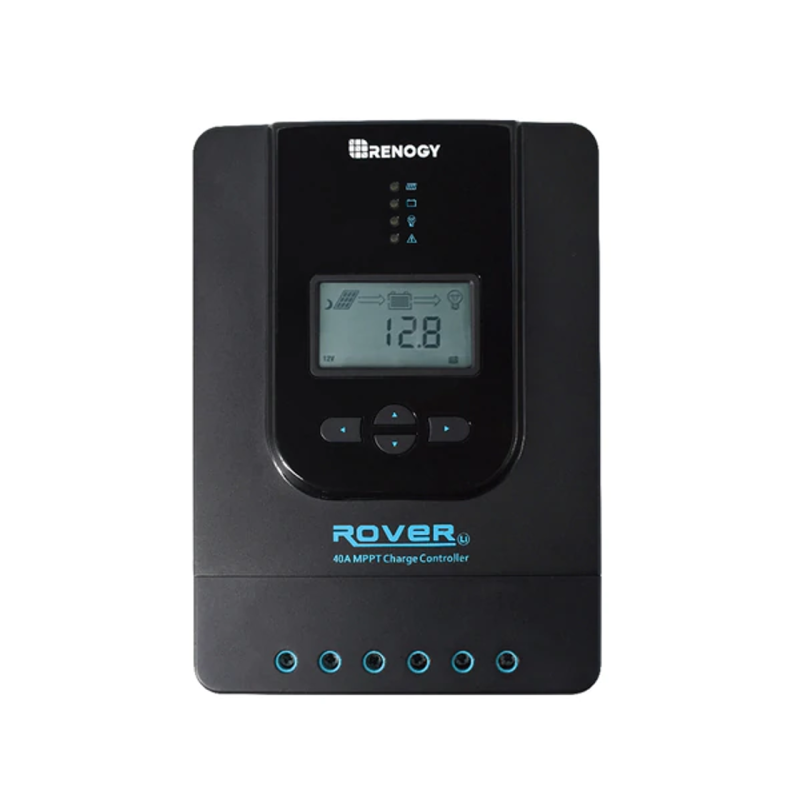

Renogy Rover Li 40 Amp MPPT Solar Charge Controller with Bluetooth Module

Renogy Rover Li 40 Amp MPPT Solar Charge Controller with Bluetooth ModulenMeet the newly redesigned 40A Rover MPPT Charge Controller. This smart charge controller is capable of conveniently self-diagnosing itself in the event of an error and can be used with the Bluetooth Module, Renogy BT-1. By pairing the Rover with the BT-1 and the Renogy BT app through Bluetooth, users can monitor and adjust their solar system straight from their phones. The Rover was also built tough with a die-cast aluminum exterior which allows for safe heat dissipation and general protection from wear and tear.n

n
• Powerful Heat DissipationnOperates at peak performance even in extreme temperatures, ensuring your system is always running smoothly and efficiently.
n
• Bring Dead Batteries to LifenOperates with 0 Volt batteries by sending small current to get them out of protection mode triggered by the battery management system (BMS).
n
• Exceptional Resilience and Long-lasting PerformancenDesigned with materials and coatings that prevent rust and corrosion, ensuring your solar energy system is durable and reliable.
n
• Prioritize Safety with Battery Voltage SettingnIt is essential to set the battery voltage before connecting the Rover Charge Controller. This crucial step ensures enhanced safety and optimal performance.
n

nKey FeaturesnAutomatically detects 12V or 24V DC system voltages. Compatible with various Deep Cycle battery options: Sealed, Gel, Flooded, and Lithium.nInnovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.nElectronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.nLCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.nFeatures diverse load control; also capable of charging over-discharged lithium batteries.nDie-cast aluminum design allows for efficient heat dissipation.nRS232 port to communicate with BT-1 Bluetooth module.nnPackages IncludenRover Li 40 Amp MPPT Charge ControllernRemote Temperature SensornOptions: BT-1 Bluetooth ModulennТехнічні характеристики:nnnnRover 40 Amp MPPT Solar Charge ControllernnnnnnnnnnnnnnnnnnnnnnnnnnnnnnOptions: BT-1 Bluetooth Modulennnnnnnnnnnnnnnnnnnnnnnnnnnn

Rated Battery Current: 40A	Rated Load Current:20A
Max. PV Input Short Current: 50A	Max. Battery Voltage: 32V
Max Solar Input Voltage: 100VDC	Charge circuit voltage drop: ≤ 0.26V
Discharge circuit voltage drop: ≤ 0.15V	Working Temperature: -35°C to +45°C
Max Terminal Size: 8AWG	Rated Load Current: 10% to 90% NC
Overall Dimension: 9.37 x 6.81 x 2.85 in	Net Weight: 4.41 lb.

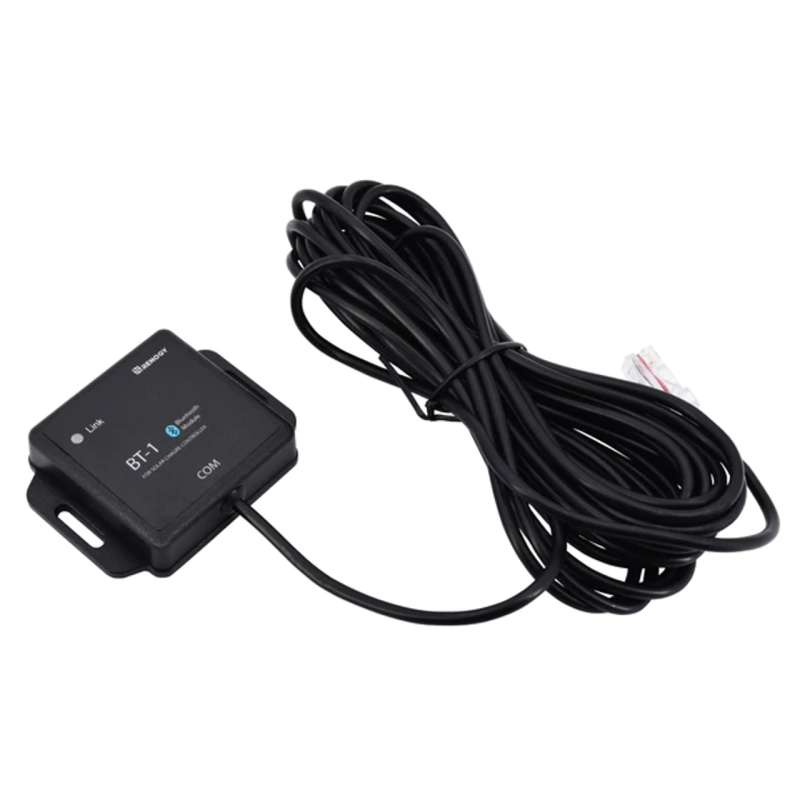

Model: BT-1	Input Voltage: 5V-12V
Standby Power Consumption: 0.04W	Operating Power Consumption: 0.05W
Communication Range: ≤15m	Serial Baud Rate: Fixed Baud Rate 9600bps
Cable Length: 5.00 m (16.4 ft)	Dimensions: 2.6 X 2.01 X 0.61 In
Installation Dimensions: 57.5, φ3.2mm (2.26, φ0.13in)	Operation Temperature: -20°C to 75°C (-4°F to 167°F)
Protection Grade: IP67	Weight: 120 g (4.2oz)

n nn
