double-sided textured PEI plate for Bambu Lab X1, P1 series and A1 3D printers

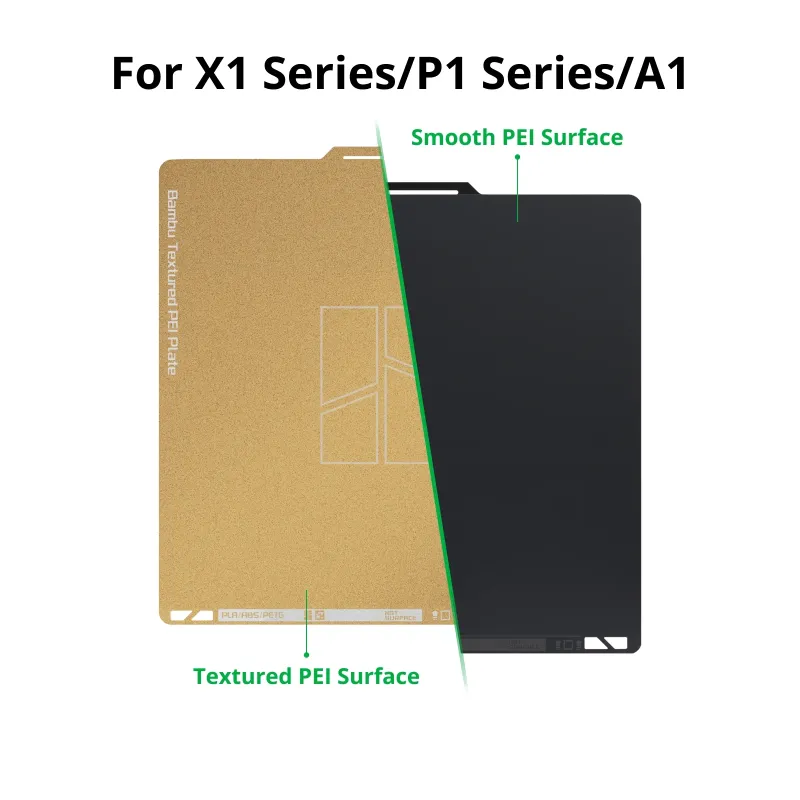

Two textures (textured and smooth) in one platenEnjoy the benefits of two different textures in one plate, with one side having a textured PEI surface and the other side having a smooth PEI surface. This plate features a 0.5mm thick stainless steel magnetic plate that enhances magnetic adhesion and helps prevent deformation and ensure optimal print quality during 3D printing.nSmooth PEI surface:n

n
• High print accuracy in the Z-axis
n

nPEI's smooth surface contributes to improved Z-axis accuracy during printing, providing greater accuracy and consistency in the vertical dimension.n

n
• Smooth and matte surface
n

nThe use of a specially selected matte PEI sheet can add a smooth and matte texture to the bottom surface of a printed object, improving its overall appearance.nTextured PEI surface:n

n
• Excellent first layer adhesion and increased durability
n

nPEI's textured surface has increased durability and improved adhesion between prints and plate, eliminating the need for adhesive.nn*In some cases, adhesive is required for very specific filamentsn

n
• Self-release on cooling
n

nThe textured PEI surface can withstand repeated cycles of heating and cooling of the printer's heating pad. Prints are easily removed when the heating surface reaches room temperature.nTips:n

n
• Dust and grease deposits on the build plate can impair adhesion. It is recommended to clean the surface regularly with detergent and water to maintain the best possible adhesion.
n
• Increasing the temperature of the heating layer improves adhesion. Users should adjust the temperature of the heating layer according to their specific requirements to achieve the most suitable level of adhesion.
n
• Thoroughly sanding the surface of Textured PEI with fine grit sandpaper (600 grit recommended) can help restore adhesion.
n
• If bubbles appear on the bottom of the Smooth PEI sheet, heating it on a thermostat at a temperature of at least 80 degrees for several hours can help eliminate the bubbles.
n
• Do not clean the Bambu Dual-Texture PEI plate with acetone as this may damage the PEI surface.
n
• Bambu Lab recommends using only official Bambu Lab adhesive on Bambu Lab plates and is not responsible for any damage caused to the plates as a result of using a third-party adhesive on the plates.
n
• Always wait a few minutes before removing printed models to allow the plate to cool down for easy print removal. This prevents damage to the plate and ensures a long product life.
n
• The Bambu Dual-Texture PEI plate is considered a consumable part that deteriorates over time. The warranty only covers manufacturing defects and not cosmetic damage such as scratches, dents, or cracks. The warranty only covers defective sheets upon arrival.
n

nRecommended settingsnPlease note that other cutter settings may need to be adjusted depending on the model you are printing and your filament requirementsnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Materials	Heatbed Temperature	Glue Stick Required for  Smooth PEI Surface?	Glue Stick Required for Textured PEI Surface?
PLA/PLA-CF/PLA-GF	45~65℃	No	No
PETG/PETG-CF	60~80℃	Glue Stick/Liquid Glue	No
ABS (not for A1 mini)	90~100℃	Glue Stick/Liquid Glue	No
ASA (not for A1 mini)	90~100℃	Glue Stick/Liquid Glue	No
TPU	35~45℃	Glue Stick/Liquid Glue	Glue Stick/Liquid Glue
PVA	45~60℃	Glue Stick/Liquid Glue	No
PC/PC-CF (not for A1 mini)	90~110℃	Glue Stick	Glue Stick
PA/PA-CF/PAHT-CF (not for A1 mini)	90~110℃	Glue Stick	Glue Stick
PET-CF (not for A1 mini)	80~100℃	Glue Stick/Liquid Glue	No

nInstallation Steps for X1 Series/P1 Series/A1nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Material	PEI Powder Coating + Magnetic Stainless Steel Plate + Smooth PEI Sheet
Thickness	Textured PEI - 0.075mmnSmooth PEI - 0.125mmnStainless Steel Plate - 0.4mm
Color	Gold and Charcoal Grey
Usable Print Size	256*256mmn180*180mm
Packaging Size	300*270*17mmn220*190*15mm
Packaging Weight	0.45kgn0.23kg
